Description
Features
| DISPLAY CONSTRUCTION | 128*64 DOTS |
|---|---|
| DISPLAY MODE | TN/STN |
| DISPLAY TYPE | Positive Transflective |
| BACKLIGHT | VDD5.0V, Idd250mA |
| VIEWING DIRECTION | 6 o’clock |
| OPERATING TEMPERATURE | Indoor |
| DRIVING VOLTAGE | Single power |
| DRIVING METHOD | 1/64 duty,1/9 bias, VOP10.5V, VDD5.0V |
| TYPE | COB (Chip On Board) |
| NUMBER OF DATA LINE | 8-bit parallel |
| CONNECTOR | Pin / ZEBRA |
Key Parameters
| DRIVER IC | KS0107 / KS0108 / S6B0108 |
|---|---|
| INTERFACE | Parallel |
| BACKLIGHT | Blue |
| CHARACTER COLOR | White |
| CHARACTER SET | ASCII |
| DIMENSION | 93 * 70 * 14 |

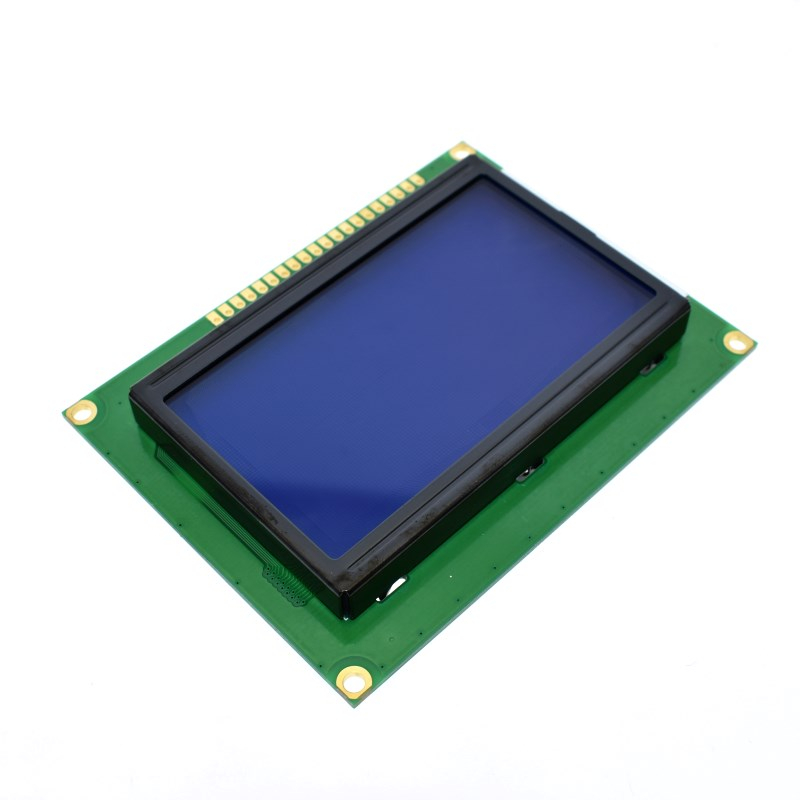

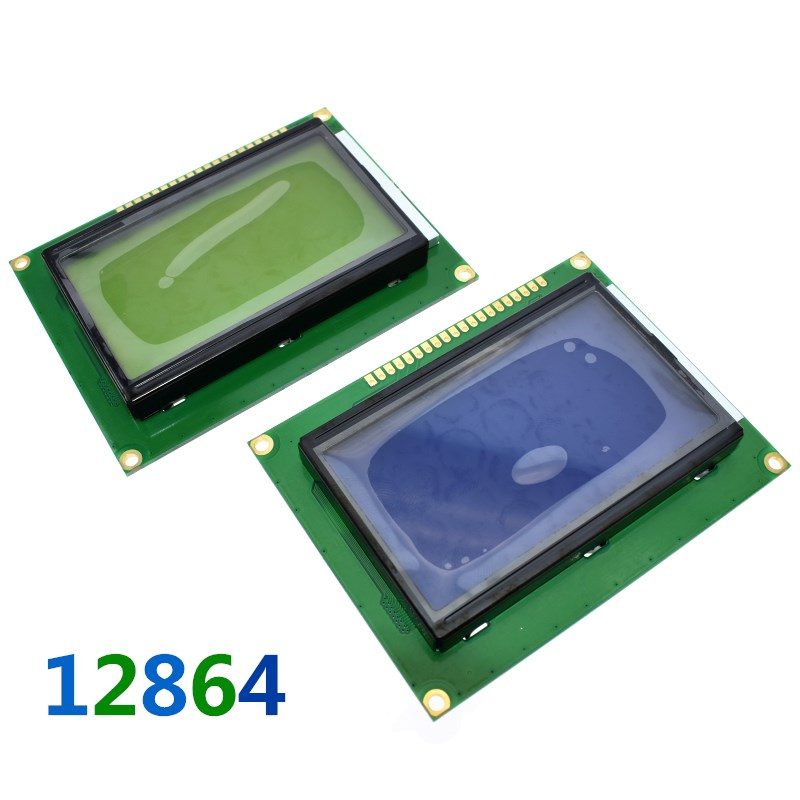

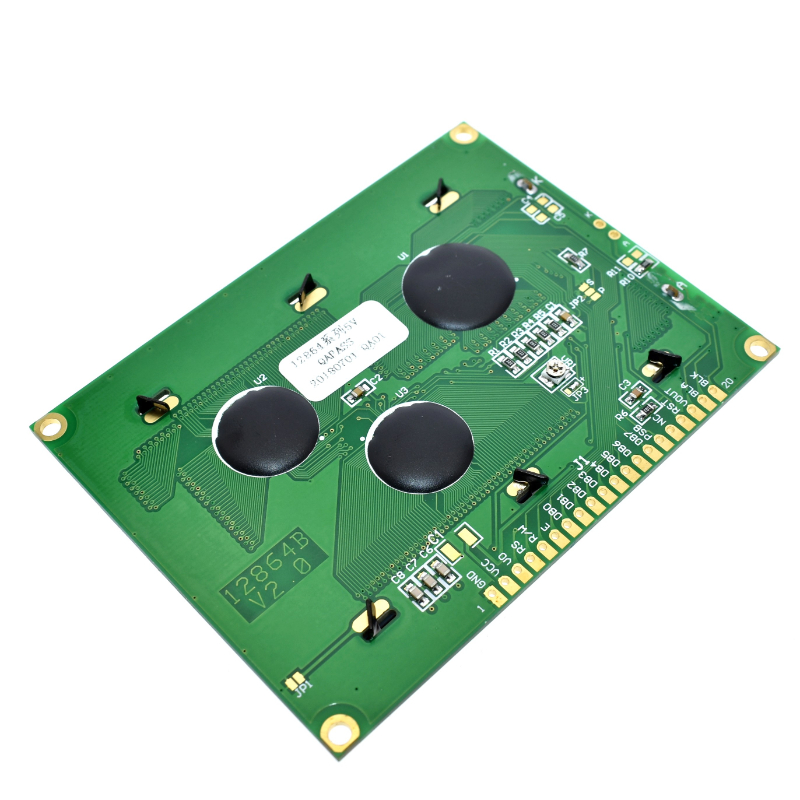

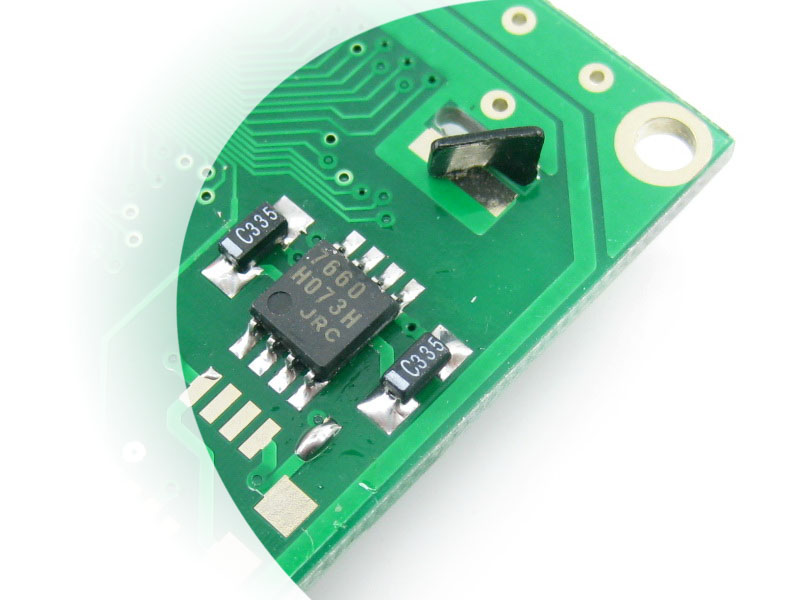

Photos
Interface
| PIN NO. | SYMBOL | DESCRIPTION | FUNCTION |
|---|---|---|---|
| 1 | VSS | Ground | 0V (GND) |
| 2 | VDD | Power Supply For Logic Circuit | +5V |
| 3 | V0 | LCD Contrast Adjustment / Operating Voltage For LCD | |
| 4 | RS | Instruction/Data Register Selection | RS = 0 : Instruction Register RS = 1 : Data Register |
| 5 | R/W | Read/Write Selection | R/W = 0 : Register Write R/W = 1 : Register Read |
| 6 | E | Enable Signal | |
| 7 | DB0 | Data Bus | DB0-DB7 |
| 8 | DB1 | ||
| 9 | DB2 | ||
| 10 | DB3 | ||
| 11 | DB4 | ||
| 12 | DB5 | ||
| 13 | DB6 | ||
| 14 | DB7 | ||
| 15 | CS1 | Chip 1 Select | |
| 16 | CS2 | Chip 2 Select | |
| 17 | /RST | Reset | Reset Signal (Low) |
| 18 | VEE | Negative Voltage Output/Input (-10V) | |
| 19 | LEDA | Power Supply For Backlight+ | +5V |
| 20 | LEDK | Power Supply For Backlight- | 0V |
External Dimension
